Potain Obendreher

[alexx 0]

hello jeff

i dont no, but this sign depends on cran

greetings
Alex bearbeitet 22. August 2008 von alexx

[jeff 0]

Hello Alex,

Yes, a K 30-30

Why did I think of a H 30-30 ?

Greetings
Jeff

[Tinu 0]

Hello Jeff

Perhaps because of this???
It is the same crane type, perhaps these also have attached the wrong panel.
Perhaps show somebody more there, the crane on the resting-place is the same od anyway? But there
H40/40 is in Basel K30/30? Huh:

Sorry, for my English it was translated

Habe gesagt vielleicht desswegen und das es doch der selbe Krantyp ist.....
Vielleicht weis jemad da mehr, der Kran auf dem Lagerplatz ist doch der gleiche od??? Aber dort steht H40/40 bei dem in Basel K30/30??? Haben die nur eine flasche Traglasttafel hingehängt od was ist da anders?

Gruess Tinu bearbeitet 22. August 2008 von Tinu

[jeff 0]

Hello Tinu,

Well, let's remember the meaning of the code letter and number for these types of Potain cranes :

Letters are for the jib length :

D for 40 meter
E for 45 meter
F for 50 meter
G for 55 meter
H for 60 meter
J for 65 meter
K for 70 meter

Numbers :

- the first part is for the maximal power. Number x 4, so for example 2 = 2 x 4 = 8 ton ; 4 = 4 x 4 = 16 t. Numbers like 25 or 30 must be understood as 2,5 and 3, so 25 = 2,5 x 4 = 10 tom and 30 = 3 x 4 = 12 t. The first part number is DM (Double Mouflage).

- The second part is for the power at the maximal jib length. For example 23 = 2,3 t ; 40 = 4 t This second part number is SM (Simple Mouflage)

So a H 30 30 and a K 30 30 are both 12 ton max power models, but the 3 ton power is at 60 meter for the H model and at 70 meter for the K model. Nevertheless the H 30 30 has a very different aspect from the H3, H4, H5, K30, K 40, K3, K4 and K5 models (first versions of K series)


But it is rather hard to distinguish some H3 or H4 from K series when these cranes have not their maximal jib length. And sometimes it may be a wrong panel attached to the mast... I once saw a "Potain H 30 23" panel on a "BPR 431"

Greetings,
Jeff

[Torsten K 56]

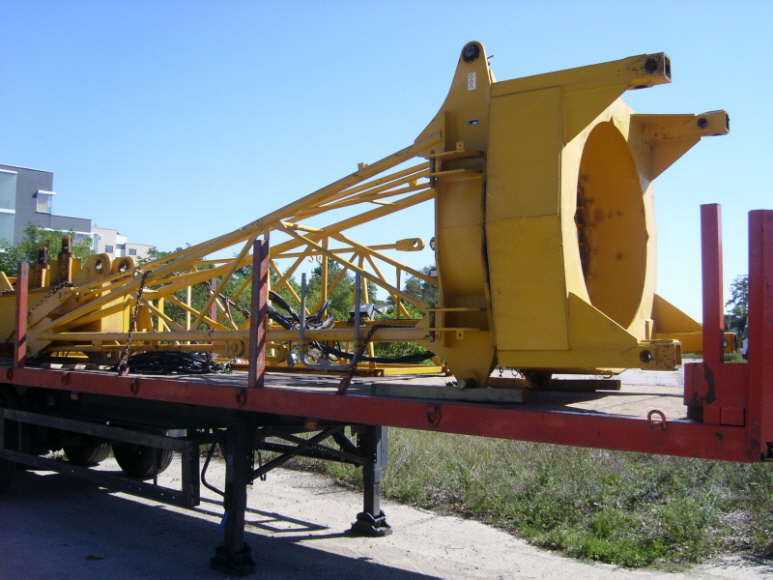

Ein paar Teile eines Potain MD zerlegt auf einem Trailer. Der Rest des Kranes wurde wohl schon abtransportiert.
Der zweite steht noch, wird wohl aber auch bald demontiert.
