My dear friend Liviu... ahem.
Do you know how long I tried to get, unsuccessfully, hold of data or pictures of K 2500 and alike ?
And now you post these without warnings !!
You gave me a heart attack tonight !

THANK YOU ! bearbeitet 30. Januar 2010 von Beat

[S 46 0]

So the K 2500 is more the little version of K 10000... and topslewing ?
I can`t find words...
But the K 5000 still seems to be totally normal... ( with the A - Strut Topmast).
Or are you also gonna prove else ?
I challenge you to do so !!

[djlivus 0]

So the K 2500 is more the little version of K 10000... and topslewing ?
I can`t find words...
But the K 5000 still seems to be totally normal... ( with the A - Strut Topmast).
Or are you also gonna prove else ?
I challenge you to do so !!

@ s46: I'm glad you enjoied these pictures. You are right k-5000 has a usual structure of the tower , but it is from 2003-2005 or so. Instead the k-2500 in these pictures is an oldtimer from 1986. The present kroll k-2500 is also similar with k-5000.

[djlivus 0]

new k-2500

Kroll_K_2500_Portal.pdf

[djlivus 0]

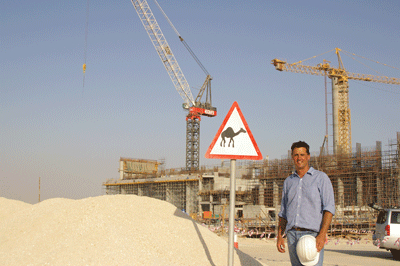

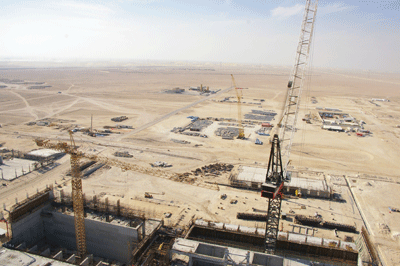

Favelle Favco M2480D
Lifting capacity: 330 tonnes @ 14.4 m radius with 36.9 m boom

Maximum boom length: 92.7 m

Maximum lift at maximum radius: 20.6 tonnes @ 91.3 m

Maximum freestanding hook height: 170 m

Line pull: 55 tonnes, high speed winch

Winch speed: 95.5 m/min

Heaviest component: Machinery deck front piece, including slew drive, pins and handrails 29.4 tonnes

Tail swing radius: 11.9 m
