Große Turmdrehkrane

[Hawe 1]

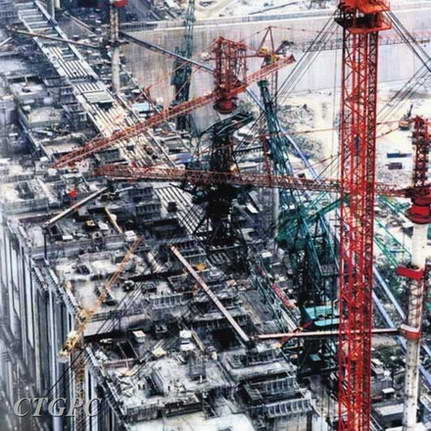

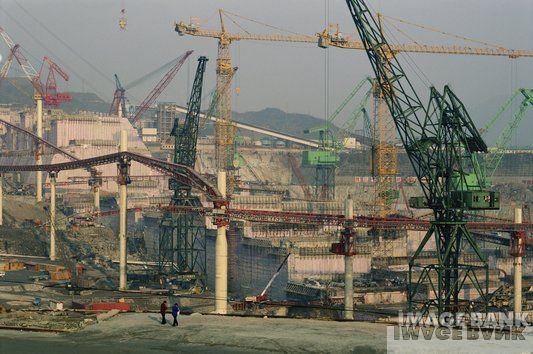

Remote sight of kroll k-1800 at Three Gorges

Are these towers for a cablecrane on the right of the Kroll-crane?

Hawe

[djlivus 0]

Are these towers for a cablecrane on the right of the Kroll-crane?

Hawe

I am not sure, but i think the asnswer is affirmative. I know that at three gorges dam were two cables cranes.

[djlivus 0]

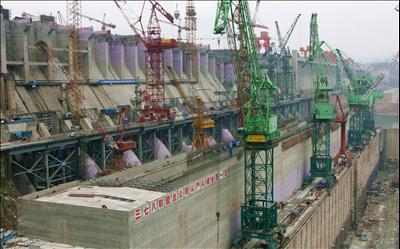

the same sight, from different angle. this kroll k-1800 has a huh of 101 m and a tower of 5.43x5.43m. rail gauge is 13.5 m.

bearbeitet 19. Oktober 2009 von djlivus

[djlivus 0]

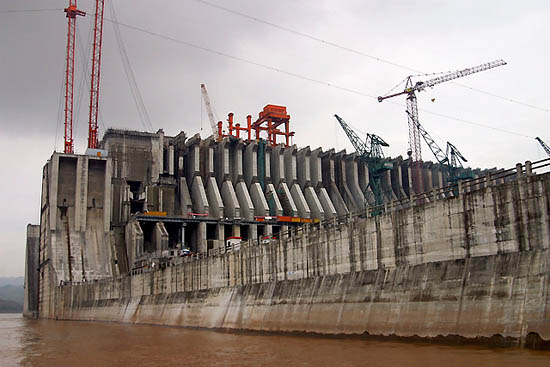

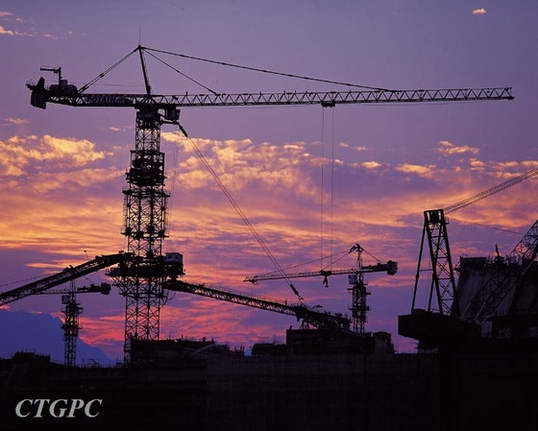

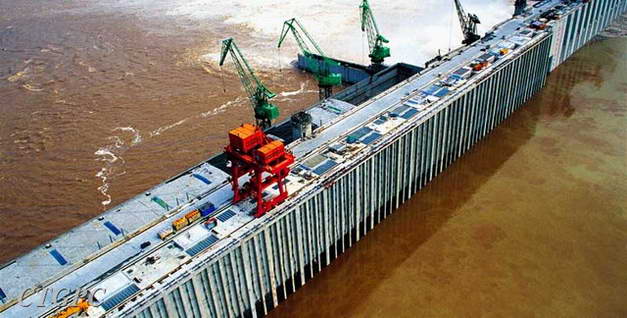

three gorges dam site

[djlivus 0]

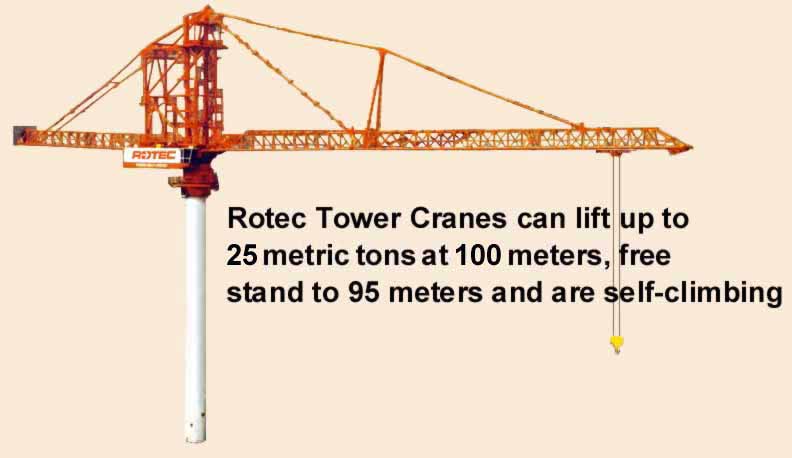

potain md-2200 and Rotec TC series

Rotec lifting cranes use cylindrical mast sections, which are extremely strong. They provide 313 ft (95 m) of free-stand height and are subject to almost none of the mast wind-up effect evident in virtually all tower cranes using tube/lattice mast sections.

Rotec cranes are also capable of making extremely heavy lifts all the way out to the full reach of the trolley/hook block. The Rotec Tower Crane Model TC-2500 handles 25 metric tons at 100 meters; the Rotec Tower Crane Model TC-2400 handles 30 metric tons at 264 ft (80 m).

General Specifications for Tower Crane Model TC-2400:

Jib Radius 275 ft (84 m)
Trolley Radius 264 ft (80 m)
Maximum Hook Capacity (30m-60m) 30 mt
Maximum Hook Capacity (0m-29m) 60 mt
Slew Speed 0-0.5 rpm (variable)
Mast Diameter 11.5 ft (3.5 m
I really don't like these tubular tower crane!

bearbeitet 19. Oktober 2009 von djlivus
