Huge cranes were also manufactured in China, especially luffing jib tower cranes.

http://www.dlco.com.cn/en/Exhibit/exhview.asp?pid=11

Qts3150 with a maximum load of 125 tonnes is inspired by peiner vm2000

http://www.cranestodaymagazine.com/story.a...orycode=2038191

[djlivus 0]

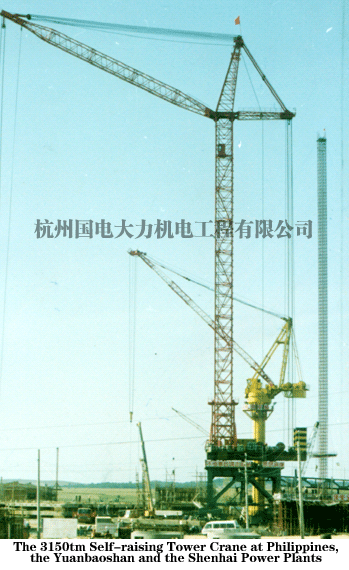

Another picture with qts3250 tower crane. On a chinesse site is sad that a verssion of this crane qts3150A weighs 745 tonnes. Chinesse have in the same series models like qts1260, qts2450 and qts3200. Qts 3200 and QTS 2450 have a maximum tower height of 88 meters and a maximum hook height of 134 meters. Jib is about 54 meters.

[djlivus 0]

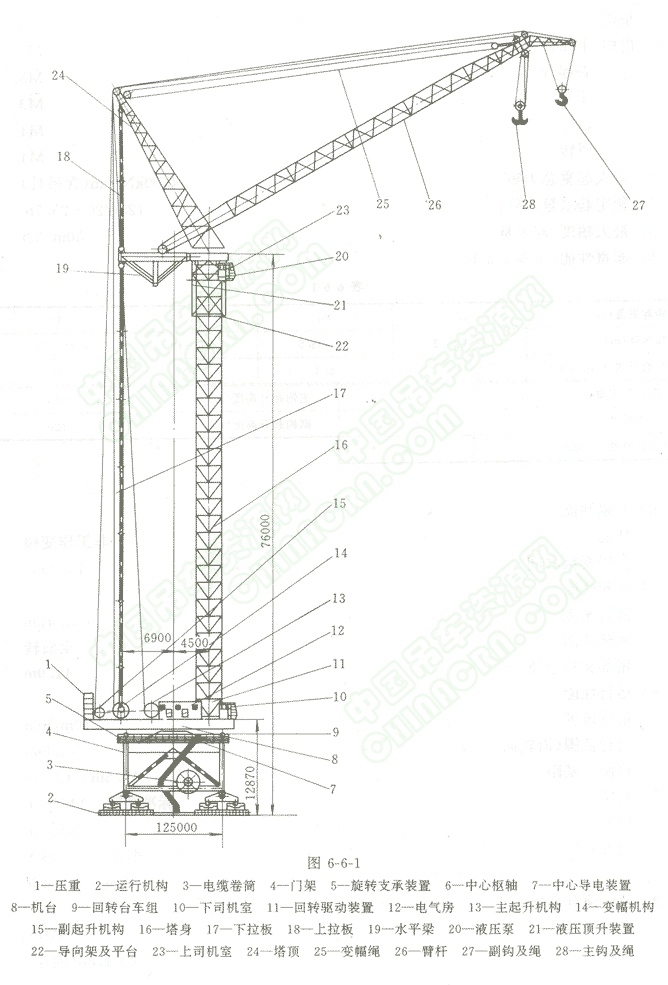

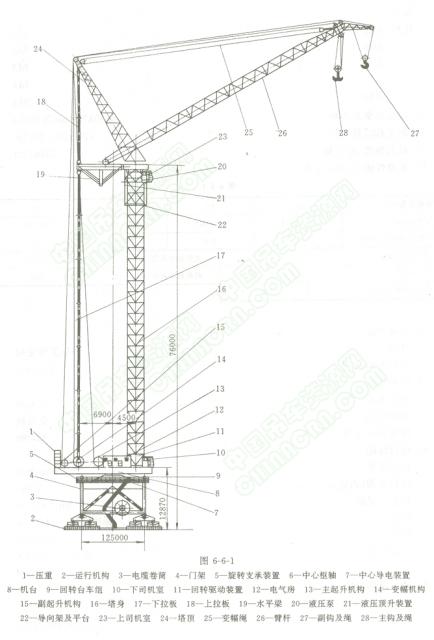

Another huge crane made in China is qtz3450 The height of the tower is 76 meters and the rail span is 12,5 meters. This crane has a design inspired by some japonesse IHI tower cranes

[djlivus 0]

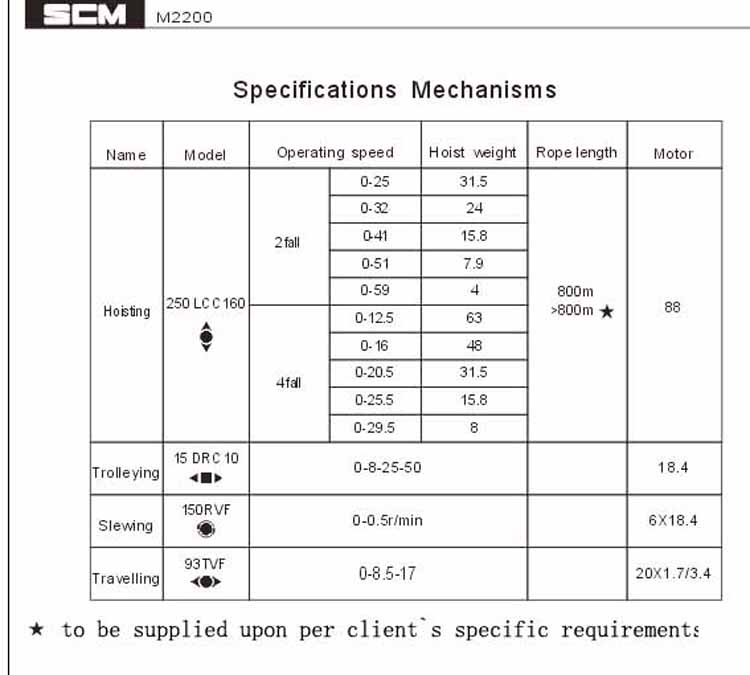

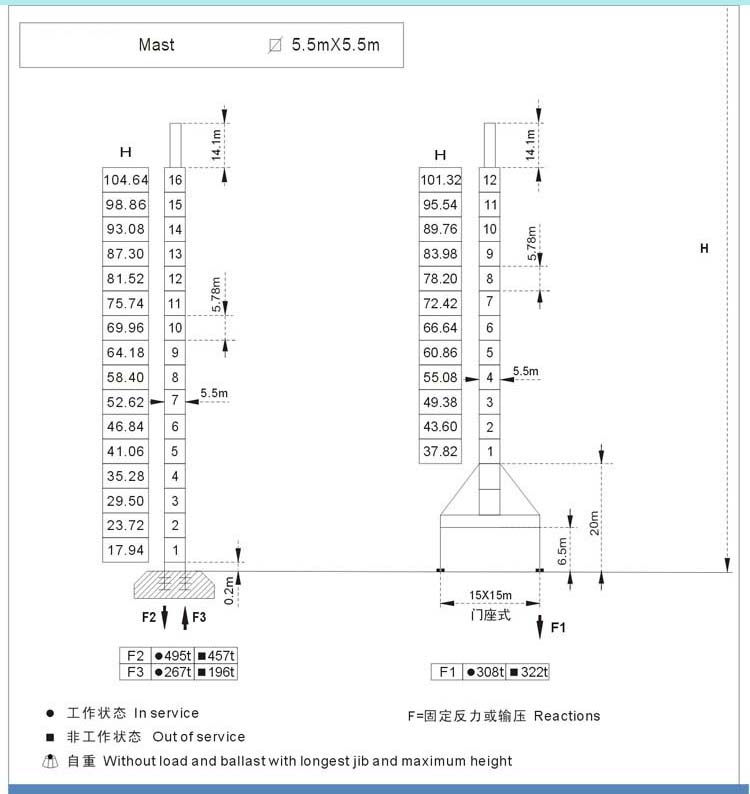

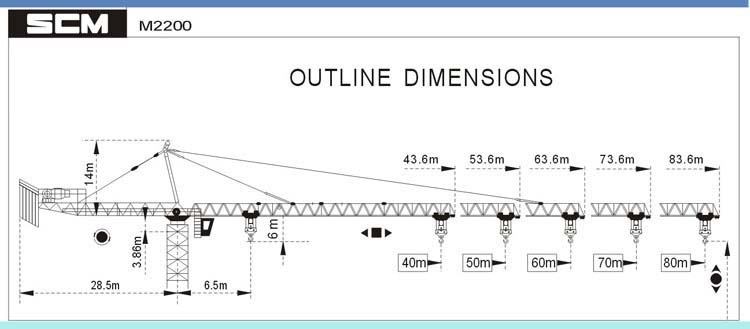

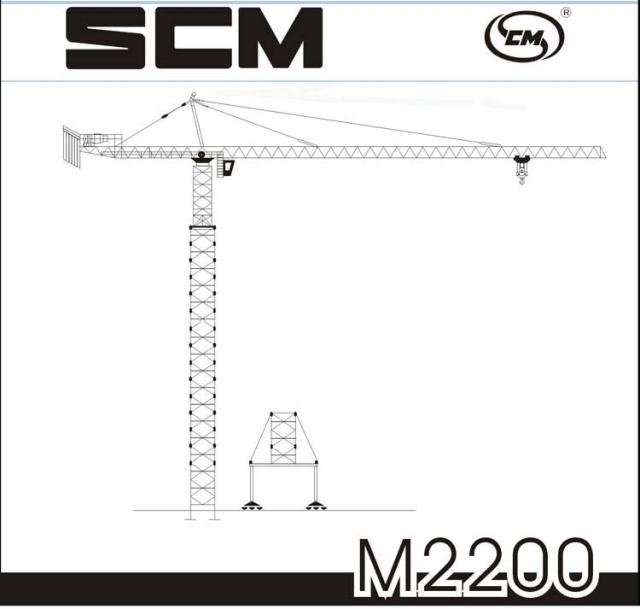

In hammer head range chinesse have m2200, m1500, made by SCM. These crane have many features common with Potain MD cranes, including tower tubular system, and overall design.

[djlivus 0]

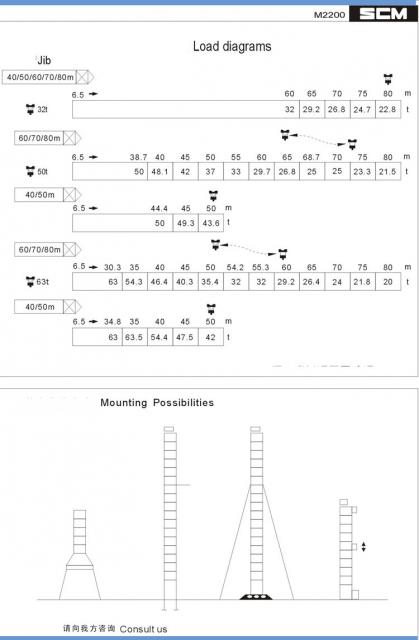

The pdf presentation is also similar with the one from potain
