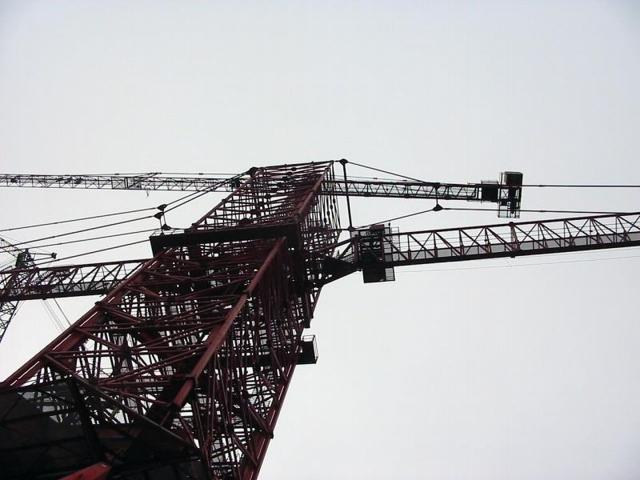

k-10000-view from the base

[djlivus 0]

Kroll Tower Crane
Model K10000 -specifications

Summary Specification

Manufactured by Kroll Cranes A/S in Denmark
This crane model is the largest capacity such crane in the world with a 10,000-tons/meter rating.

This is a bottom slewing saddle jib tower crane with variable radius counterweight system.
With twin winch Ultra Lift system and mounted on rail traveling portal bogie system.
The crane is also equipped with a 400-tons/meter capacity service crane and personnel lift installed in the mast above the main crane.
Characteristics:

Bottom slewing saddle jib tower crane
With variable radius counterweight system
With twin winch ultra lift system
Mounted on rail traveling portal bogie system.
Equipped with a 400-tons/meter capacity service crane
Equipped with a personnel (man) lift installed in the mast.
Specifications:
Height under hook: 88 meters
Jib length: 84 meters
Counter jib length: 56meters
Max working radius 6 fall (60 ton capacity): 84 meters
Max working radius 12 fall (120 ton capacity) : 82 meters
Ultimate max load: 240 tons@ 44 meters radius
Including:
240 tons capacity hook block
Rail traveling electric powered undercarriage, 18 x 18 meters
Liebherr service crane:
- Max capacity 20 tons @ 20 meters radius
- Tip load 4.4 tons @ 63 meters radius
Hoist winches – performance details:

Single trolley
2 part line
0 - 10000kg
0-49 m/min

10000 - 20000kg
0-33 m/min

6 part line
0 - 30000kg
0-16 m/min

30000 - 60000kg
0-11 m/min

Double trolley
12 part line
0 - 60000kg
0-8 m/min

60000 - 120000kg
0-5.5 m/min

Heavy lift
24 part line
240000kg
0-5.5 m/min

Trolley winches – performance details:

2 part line 0 - 10000kg
0-90 m/min
10000 - 20000kg
0-45 m/min
6 part line
0 - 15000kg
0-90 m/min
15000 - 30000kg
0-45 m/min
12 part line
0 - 30000kg
0-45 m/min
30000 - 60000kg
0-22 m/min
60000 - 120000kg
0-15 m/min
Slewing motors - performance details:

4 Units.....0.4 r.p.m
Rail traveling bogie - performance details:

8 Units.....0-8 m/min
Machinery total installed HP
Hoist winch #1
:
200 HP *

Hoist winch #2
:
200 HP *

Slewing
:
125 HP **

Trolley winch
:
12.5 HP **

C/weight trolley
:
20 HP **

Travel (10HP x 16)
:
160 HP *** Total power:715,5 HP

* Stepless operation via BBC Veritron thyristor DC control

** Electro hydrostatic power , AC 50hz

*** Stepless operations, thyristor control AC50hz

Service Crane

Liebherr 355HC saddle jib crane

Hoist winch: 110kw

Jib length: 63m bearbeitet 18. August 2009 von djlivus

[S 46 0]

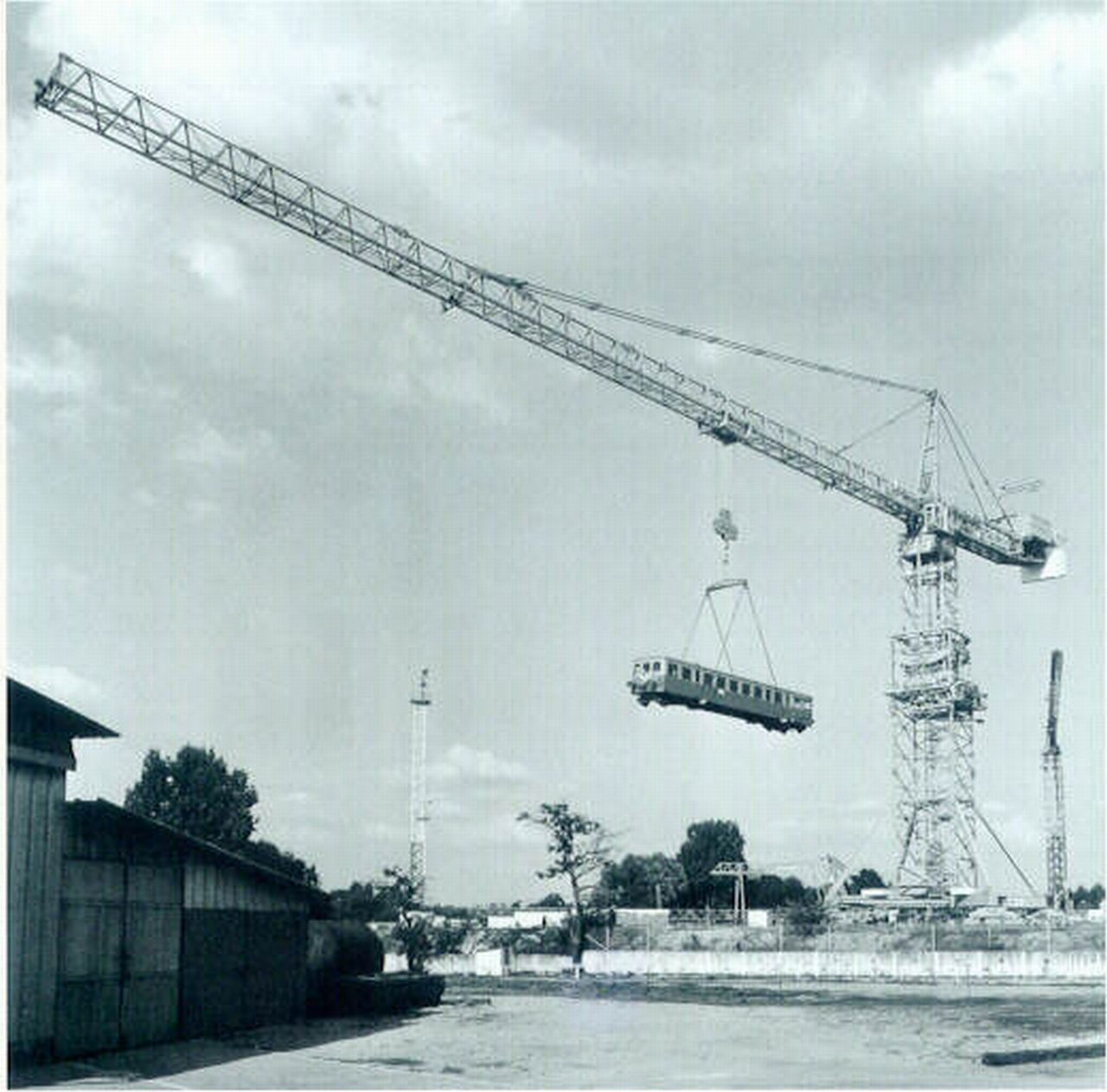

Dieser hier gehört nicht zur Klasse eines K10000, aber ist dennoch ein "KAWENZMANN".
Eigentlich wollte ich den 1250B noch zum Größenvergleich hinzustellen, das verbieten aber die max. 200KB dieses Forums. Wer also mehr will => PN.

The attached cranedrawing shurely does not scratch on the class of the K 10000, but still is a character of it`s own. I`d love to have shown this crane in comparison of the mentioned 1250B, but this overrides the 200K limit of this forum. So - if you`re interested => PN, please.

Wilbert_1905L_etronic_1_.PDF

Wilbert_1905L_etronic_1_.PDF

[djlivus 0]

This is a Potain Md-2200 from 1988. It had a height under hook of 124.7m. It was shipped to Russia for nuclear power plant programe. Potain did really great cranes in 80s!

bearbeitet 3. Oktober 2009 von djlivus

[djlivus 0]

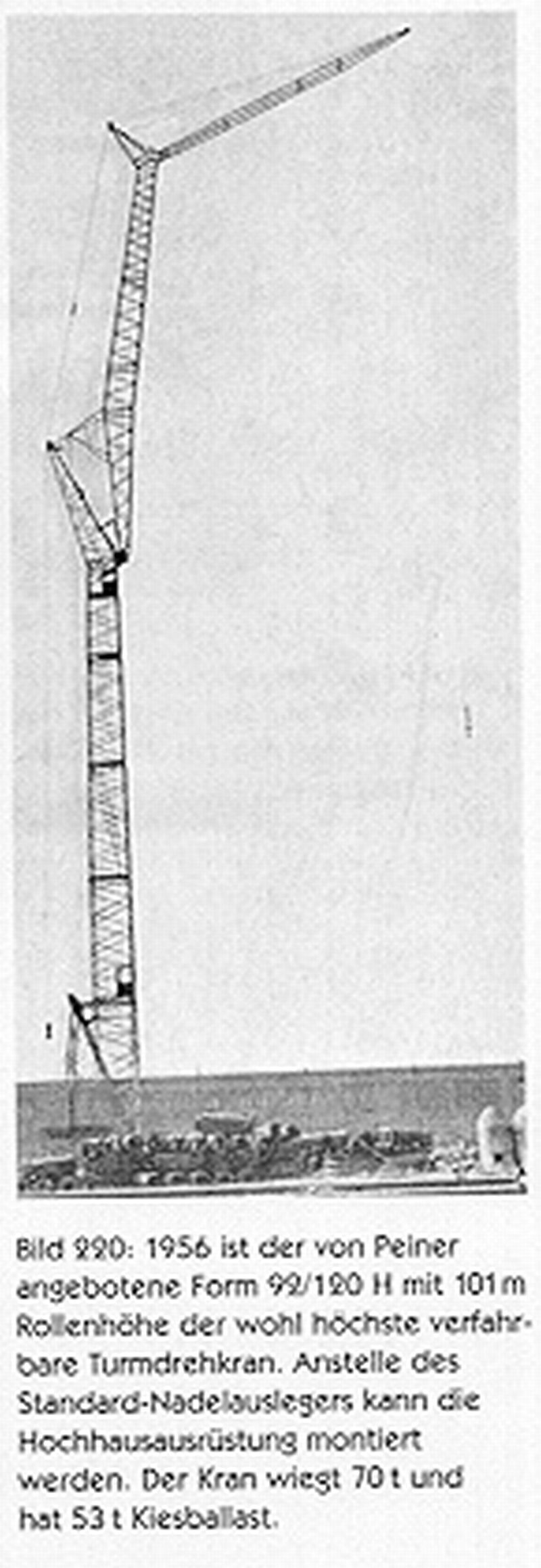

Peiner 92/120H from 1956 was at its time the tallest mobile tower crane in the world with a height of 101 m.
Total weight of this crane was 123 tonnes.
