Caterpillar 583T-587T

[QuAD 10]

Here some pic's from the new Caterpillar siteboom's 583T-587T.

Pic's are from the Cat site!

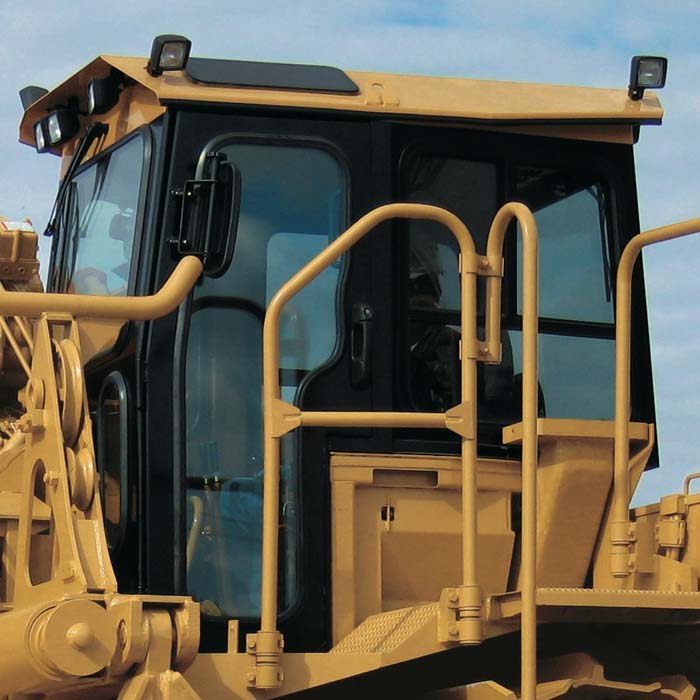

Cab

[QuAD 10]

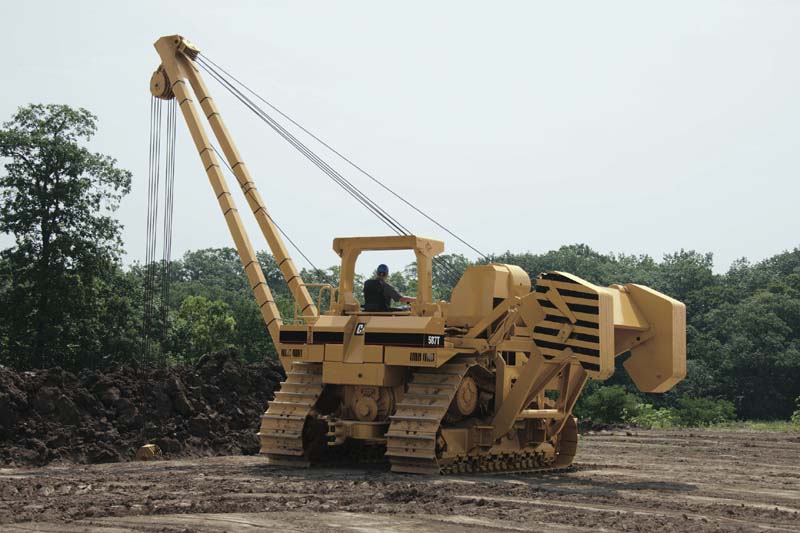

CAT 583T

[QuAD 10]

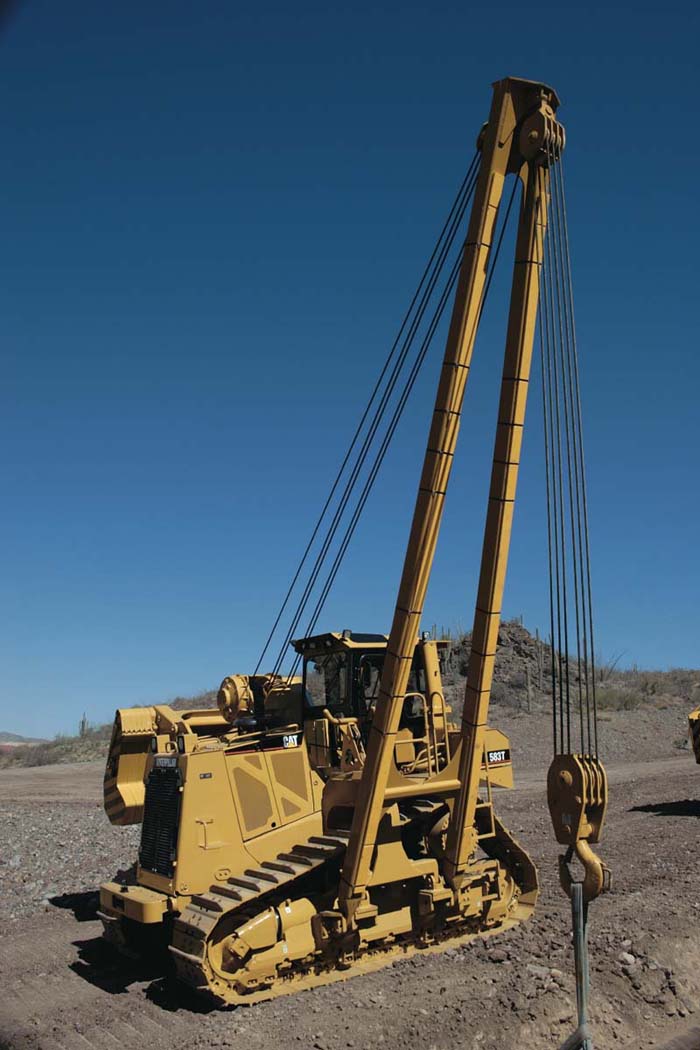

CAT 587T

[QuAD 10]

Basic Specifications for 583T and 587T pipelayers

583T
Lifting capacity 63,504 kg (140,000 lb)
Operating weight 45,359 kg (100,000 lb)
Engine model Cat C15 ACERT
Net power 231 kW (310 hp)
Boom 7.32 m (24 ft)
Track gauge 2337 mm (92 in.)
Ground contact area 5.1 m2 (7,896 in.2) with 710-mm (28-in.) shoes

587T
Lifting capacity 91,625 kg (202,000 lb)
Operating weight 53,070 kg (117,000 lb)
Engine model Cat C15 ACERT
Net power 273 kW (366 hp)
Boom 8.5 m (28 ft)
Track gauge 2540 mm (100 in.)
Ground contact are a 6.2 m2 (9,613 in.2) with 864-mm (34-in.) shoes
