Große Turmdrehkrane

[djlivus 0]

Potain MD 22500.

U N B E L I V A B L E.
More ?
But I think I can bring a new order in your chart of the big ones.
With a very contemporary model. ( ok, probably not railgoing at that dimension.
But at a max. freestanding height of...over 80m
- and then definitly over 155m ( with the max jib at maximum angle ). What about...179meters?
Interested ? Then watch this space.
Or can anyone already guess, what I am talking about ?

Hint: Here`s the hook:

I understand it is about a luffer from present days.. It is Favco M2480D? It has a tower of 80m and a boom of 90m long. Wolf 1250B 0r Wilbert WL1950L.?

[djlivus 0]

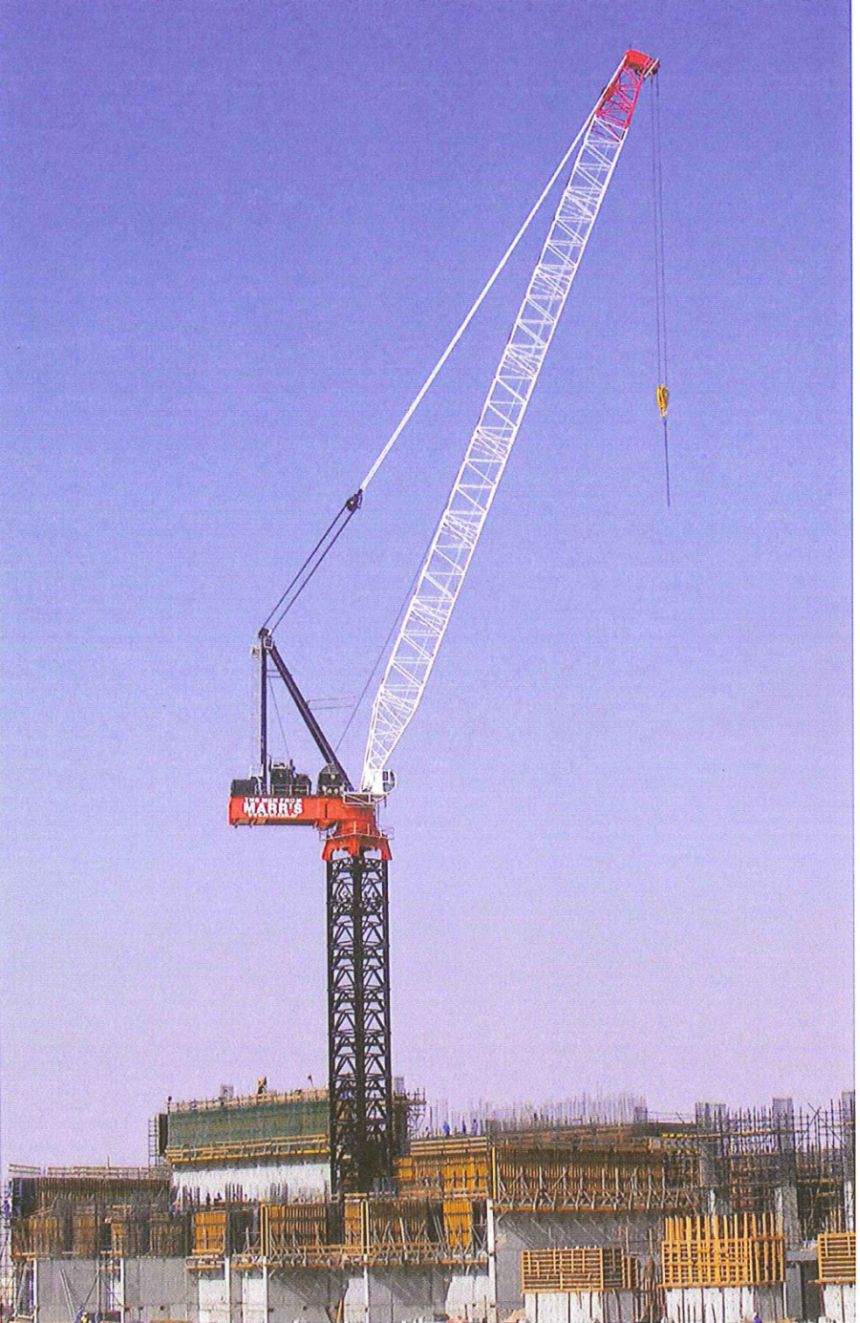

Favco 2480D

[djlivus 0]

In favello favco range this crane is the only one that has no electric counterpart.

[djlivus 0]

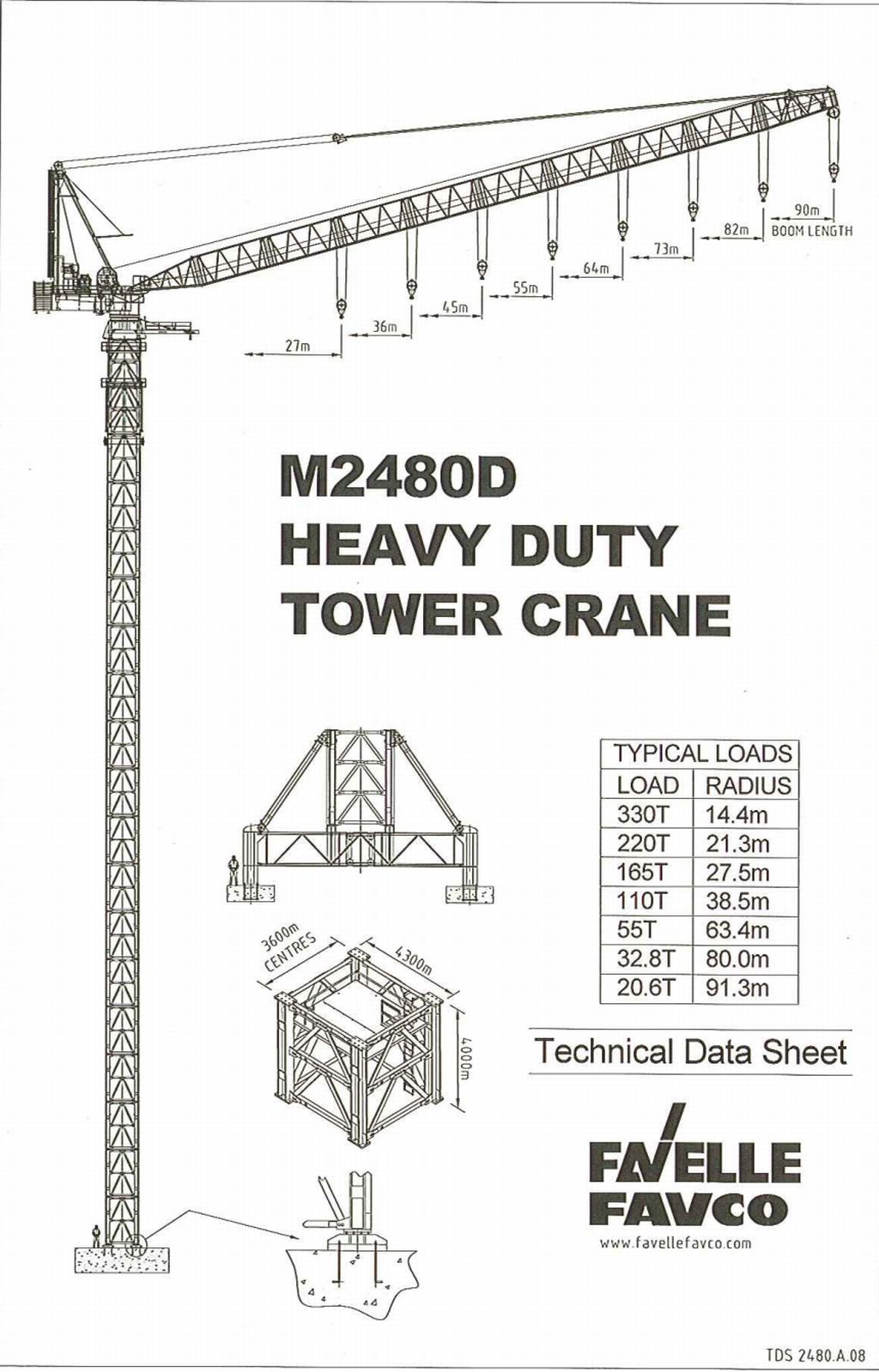

Favelle Favco M2480D

Lifting capacity: 330 tonnes @ 14.4 m radius with 36.9 m boom

Maximum boom length: 92.7 m

Maximum lift at maximum radius: 20.6 tonnes @ 91.3 m

Maximum freestanding hook height: 170 m

Line pull: 55 tonnes, high speed winch

Winch speed: 95.5 m/min

Heaviest component: Machinery deck front piece, including slew drive, pins and handrails 29.4 tonnes

Tail swing radius: 11.9 m

Can be static mounted, rail mounted, or self climbing bearbeitet 12. August 2009 von djlivus

[Gast Alwin]

@djlivus: Look here, and here, and here..
