Große Turmdrehkrane

[Wölffchen 2]

wow, great pictures.

thanks

Wöllfchen

[djlivus 0]

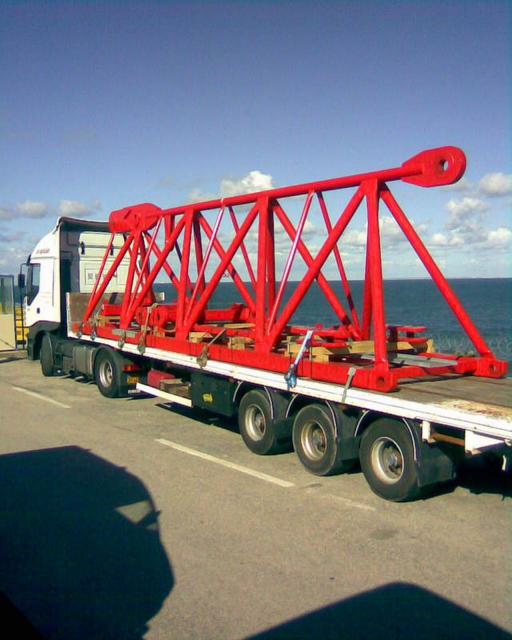

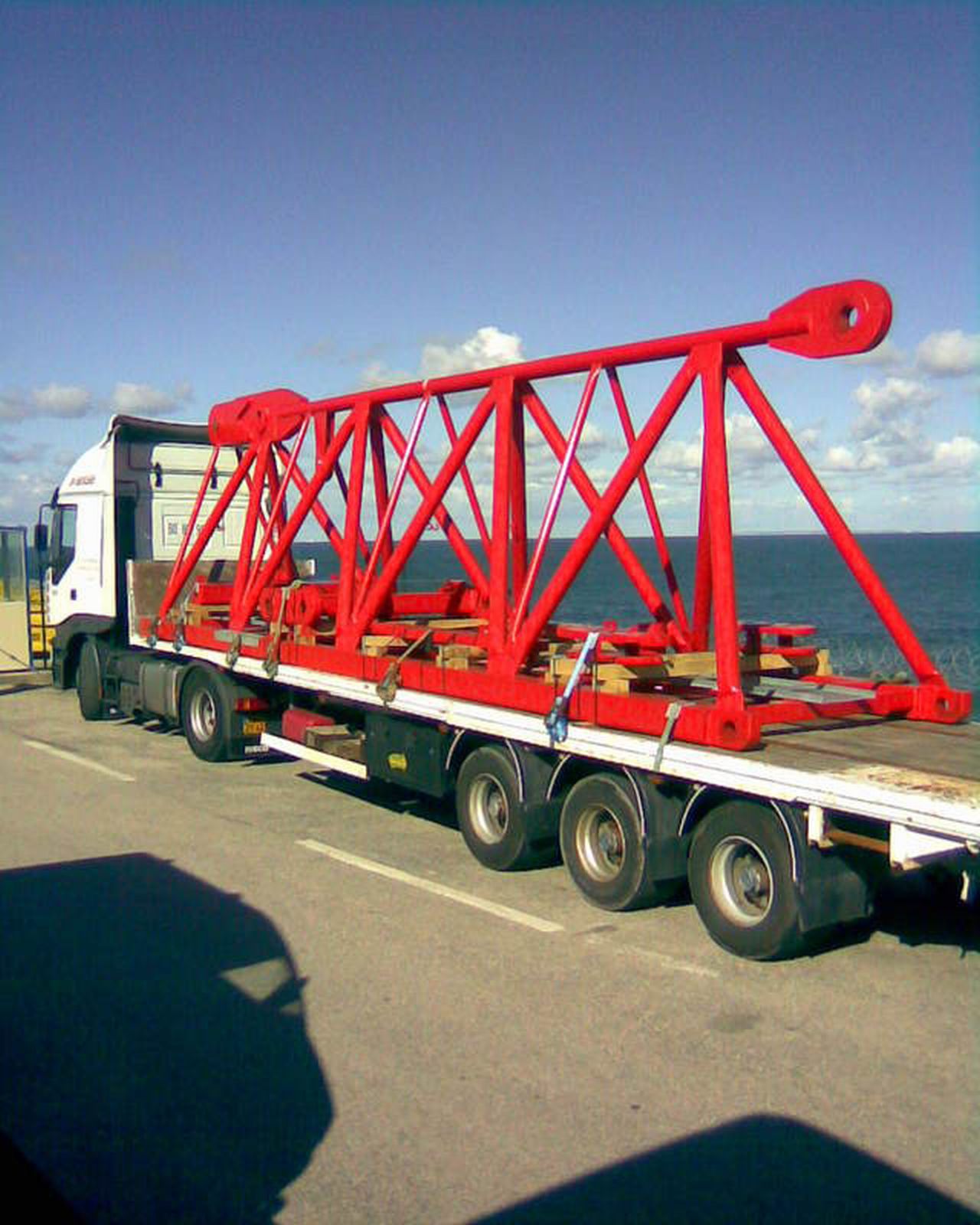

MdD-3200 Jib

[djlivus 0]

Maxi Topkit

[djlivus 0]

As far as I know tallest hammer head tower cranes [i] (freestanding height, of course) are:
1. Linden 8952 with tower section of 5.8 meters and
a height under hook 139 meters. The overall height is 148 meters. Unfortunately this custom made crane has no mobile version.
2.Potain MD1400 with a maximum hook height of 137.4 meters,when riged on a rail going base(span-15m) with a tower system of 5.5 X5.5 and 4X4 meters. If we look at overall height this is the tallest of all with more than 155 meters to the top.
3.Kroll k-10000. Although the height under hook of the main boom is only 86 meteres(max90), the tower is 124 meters, the height under the hook of second boom is 126 meters and overall height is 143m!!!

Linden 8952 in Varsow

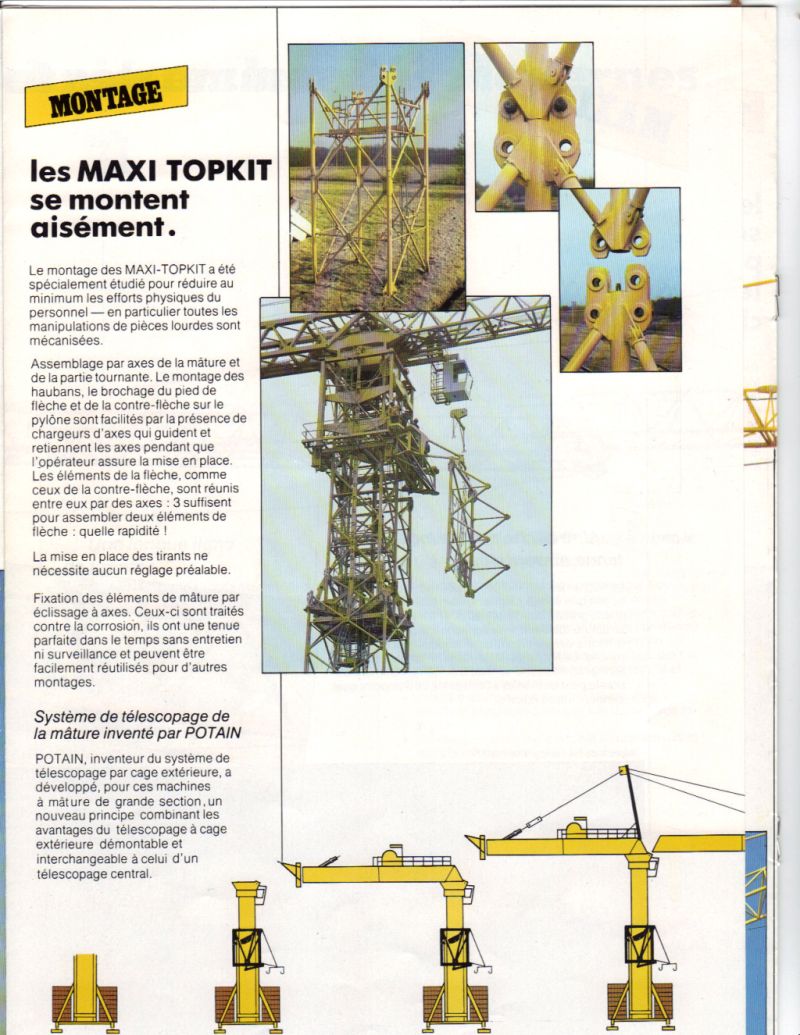

Top is changing...I just received from Mr. Pius Meyer from www.info-kran.ch an oustanding brochure about old potain maxi topkit.
So, in 1988 Potain shipped to Russia a Potain MD-2200 with a height under hook of 124,7 meters, rail-going. Maximum jib lenght was 80m, maximum load-50 tonnes. Construction weight of this crane was 516 tonnes and total weight including 45 tonnes base ballast and 93 tonnes counterjib ballast was 654 tonnes.
So, on the third place is potain md-2200 and kroll k-10000 falls on 4th place....
bearbeitet 11. August 2009 von djlivus

[djlivus 0]

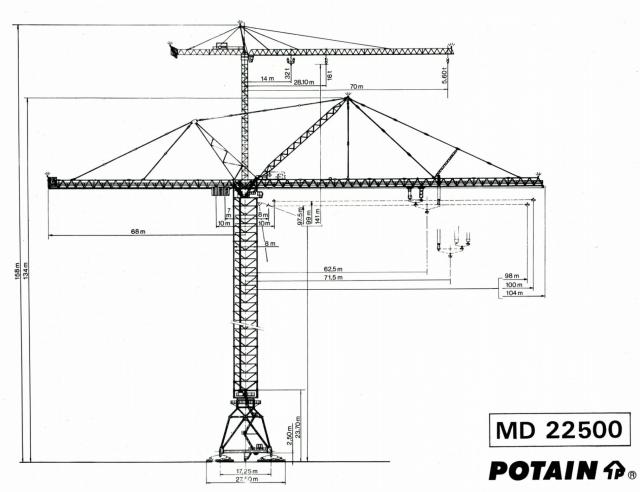

Potain MD-22500 project from the late 80s. The maximum hook height under double hook is 97.5m, and , under single hook is 99m. Tower is 8x8m (inner dimension, withouth taking into acount the width of tower steel beams). The maximum load is 360 tonnes and maximum jib lenght is 104 m. Rail gauge-17.25m
many thanks to Mr. Pius Meyer from www.info-kran.ch for this document.
